Price$995.00 Regular price$1,295.00
Total Spectrum COMPACT | 7-Wavelength 216 LEDs
Total Spectrum COMPACT | 7-Wavelength 216 LEDs Price$995.00 Regular price$1,295.00

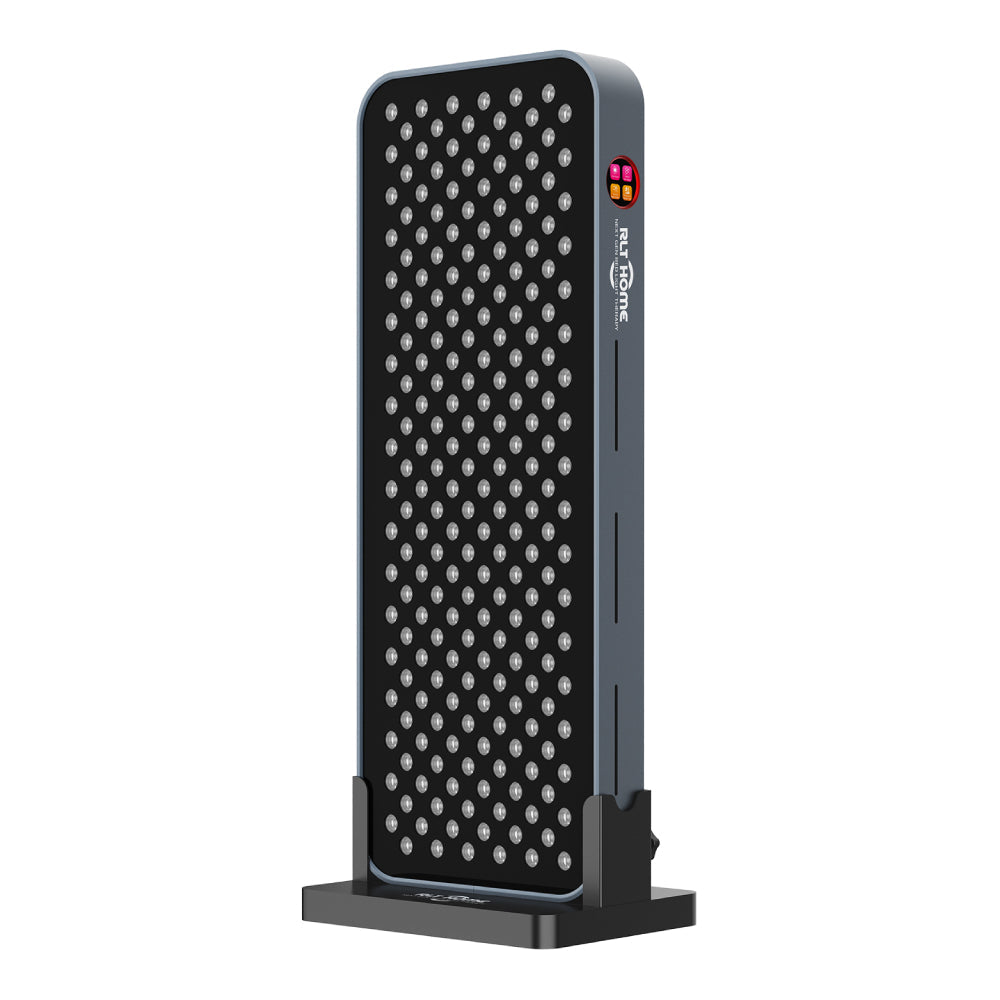

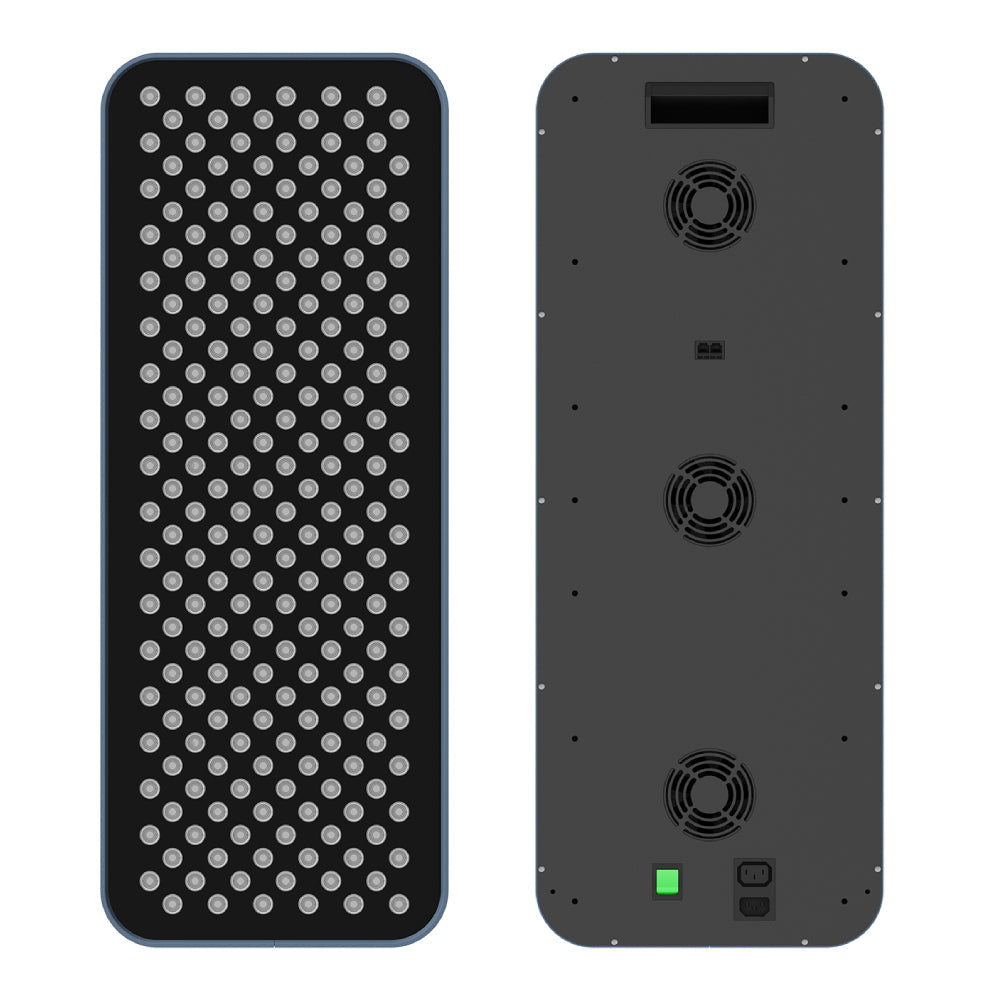

The Total Spectrum COMPACT brings RLT Home's complete 7-wavelength technology into a compact 30.3" × 11.8" format designed for precise, focused coverage of mid-size body areas — back, shoulders, or legs — that larger panels often overshoot or position awkwardly. Through 216 LEDs spanning 480nm blue light through 1064nm infrared, the COMPACT delivers 172 mW/cm² at eight inches with the same spectral precision and preset mode depth as the full-size panels in the lineup, in a 10 kg / 22 lbs aluminum body that's significantly easier to move and position for daily targeted sessions.

Nine prebuilt performance modes, a fully customizable 4-channel mode with 0–5,000 Hz pulsing, touch interface, and remote control give the COMPACT the complete RLT Home feature set without the size and weight commitment of the larger devices. With ≈0.0 μT EMF at six inches, no flicker, a 100,000-hour LED lifespan, and RoHS and CE certification, the Total Spectrum COMPACT is the precision-focused investment for those who want 7-wavelength performance applied with specificity to the back, shoulders, legs, and mid-body zones.

Key Features

  • Mid-Size Targeted Coverage: 30.3" × 11.8" format delivers precision focus on the back, shoulders, or legs — where larger panels lack positioning flexibility
  • 216 LEDs, 7 Wavelengths: 480nm blue + 630/660nm red + 810/830/850nm NIR + 1064nm infrared for complete multi-depth spectral support in a compact format
  • 172 mW/cm² Irradiance: 172 mW/cm² at 8" | 99.0 mW/cm² at 6" for consistent therapeutic output on targeted mid-body areas
  • Lightweight Aluminum Housing: 10 kg / 22 lbs — the most easily repositioned full-featured panel in the RLT Home lineup
  • 9 Performance Modes + Custom: Skin, recovery, sleep, body contouring, cognitive support, hair, and more — plus 4-channel custom mode with 0–5,000 Hz pulsing
  • Touch Interface + Remote Control: Full session control without leaving your position
  • ≈0.0 μT EMF at 6": No flicker, 100,000-hour LED lifespan, RoHS and CE certified

Specifications

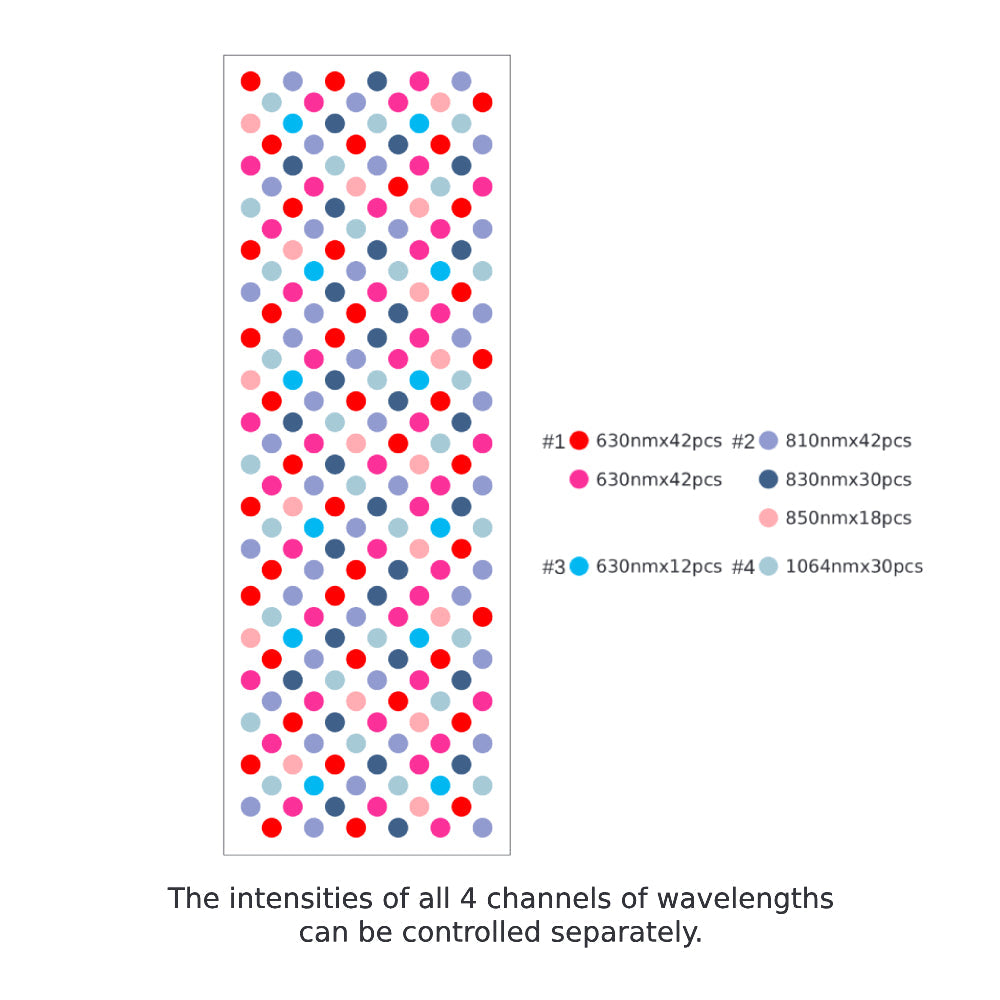

  • Wavelengths: 480nm (6%) | 630nm (19%) | 660nm (19%) | 810nm (19%) | 830nm (14%) | 850nm (9%) | 1064nm (14%)
  • Total LEDs: 216
  • Irradiance: 172 mW/cm² at 8" | 99.0 mW/cm² at 6"
  • EMF: ≈0.0 μT at 6"
  • Pulsing: 0–5,000 Hz
  • Beam Angle: 30°
  • Preset Modes: 9 prebuilt + custom (4-channel: red, blue, NIR, 1064nm)
  • Controls: Touch interface + remote control

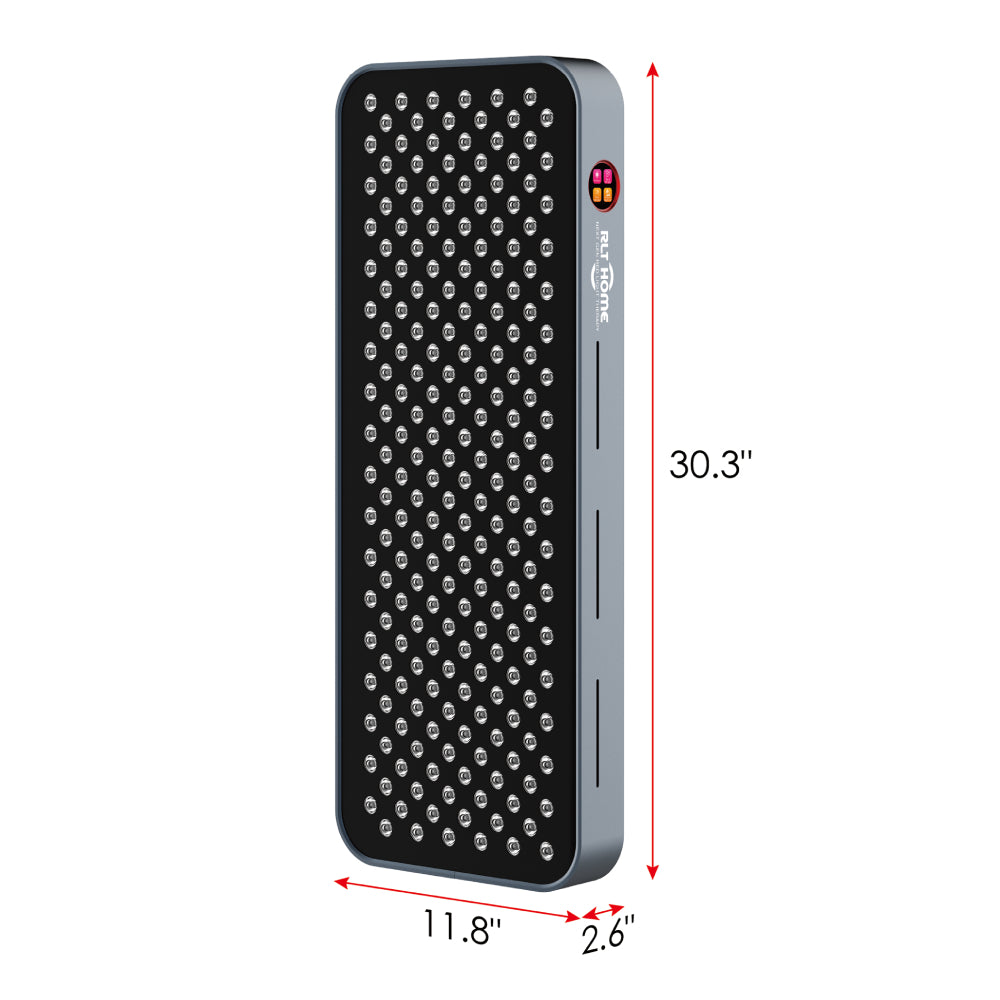

  • Device Size: 770 × 300 × 65mm / 30.3" × 11.8" × 2.6"
  • Device Weight: 10 kg / 22 lbs
  • Housing: Aluminum
  • Voltage: AC 100–240V
  • LED Lifespan: 100,000 hours
  • Certifications: RoHS, CE

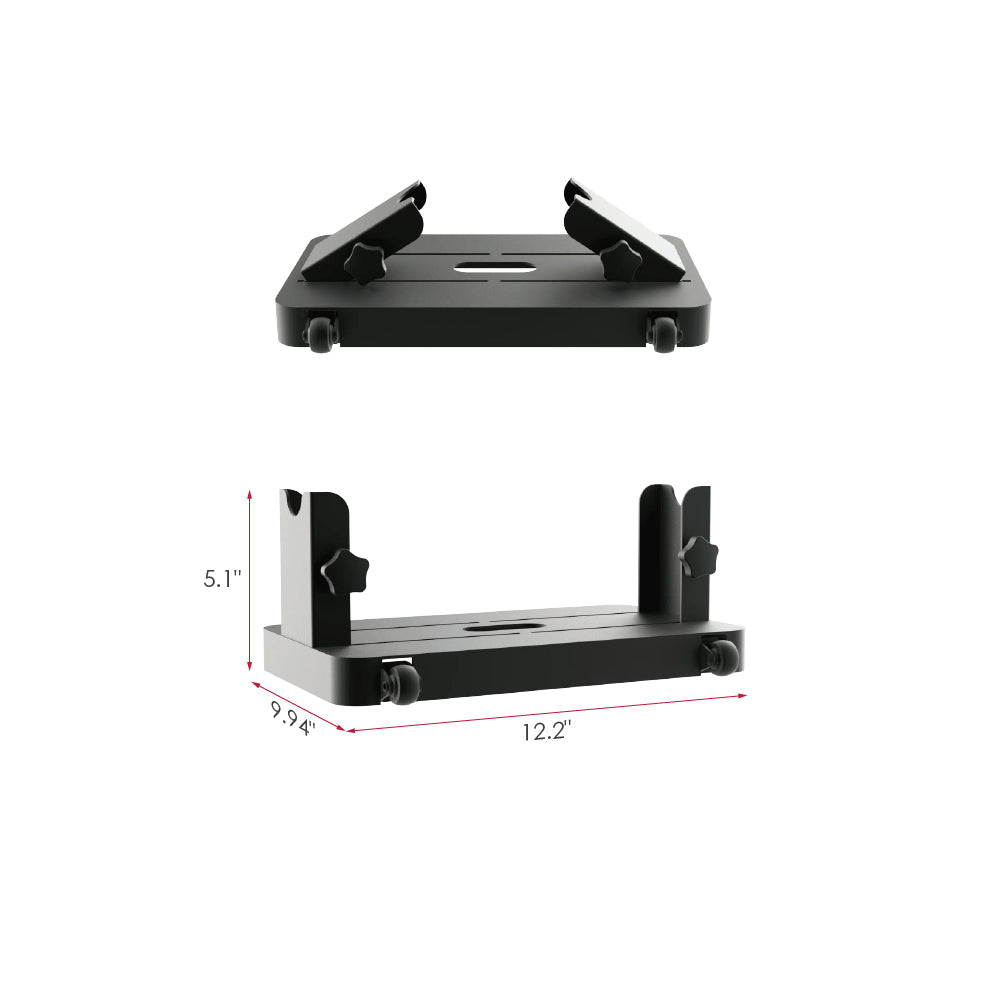

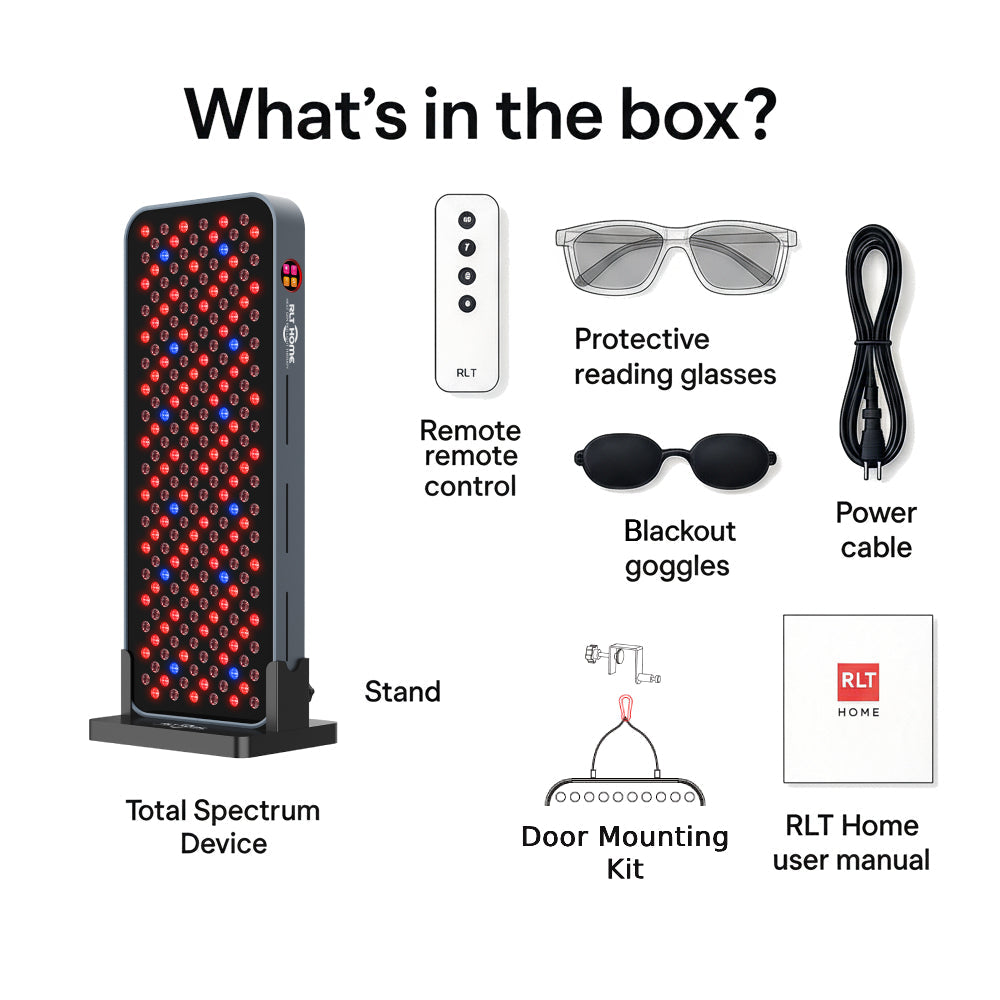

  • Includes: Device, stand, remote control, protective reading glasses, blackout goggles, user manual, power cable
